Audi A4 B9

Engines

Petrol engines

Engine	Power	Displacement	Torque	Drive	Gearbox	Gearbox code
1.4 TFSI	150PS / 110kW	1395cc	250Nm	Front-wheel drive	6-speed manual	0DJ / 0CS
2.0 TFSI	190PS / 140kW	1984cc	320Nm	Front-wheel drive	6-speed manual or 7-speed S tronic	0CS / 0CK
2.0 TFSI quattro	252PS / 185kW	1984cc	370Nm	quattro	7-speed S tronic	0CL

Diesel engines

Engine	Power	Displacement	Torque	Drive	Gearbox	Gearbox code
2.0 TDI ultra	150PS / 110kW	1968cc	320Nm	Front-wheel drive	6-speed manual or 7-speed S tronic	0CS / 0CK
2.0 TDI	150PS / 110kW	1968cc	320Nm	Front-wheel drive	6-speed manual or 7-speed S tronic	0CS / 0CK
2.0 TDI ultra	190PS / 140kW	1968cc	400Nm	Front-wheel drive	6-speed manual or 7-speed S tronic	0CS / 0CK
2.0 TDI	190PS / 140kW	1968cc	400Nm	Front-wheel drive	6-speed manual or 7-speed S tronic	0CS / 0CK
2.0 TDI quattro	190PS / 140kW	1968cc	400Nm	quattro	7-speed S tronic	0CL
3.0 V6 TDI	218PS / 160kW	2967cc	400Nm	Front-wheel drive	7-speed S tronic	0CK
3.0 V6 TDI quattro	218PS / 160kW	2967cc	400Nm	quattro	7-speed S tronic	0CL
3.0 V6 TDI quattro	272PS / 200kW	2967cc	600Nm	quattro	8-speed tiptronic	0D5

The PDF notes that ultra TDI models use low rolling resistance tyres.

Gearboxes

Gearbox	Audi code	Used with	Notes
6-speed manual	0DJ ML322-6F / 0CS ML402-6F	1.4 TFSI 150PS, 2.0 TFSI 190PS, 2.0 TDI 150PS, 2.0 TDI ultra 150PS, 2.0 TDI 190PS, 2.0 TDI ultra 190PS	Manual is listed only on front-wheel-drive four-cylinder models in this PDF.
7-speed S tronic	0CK DL382-7F / 0CL DL382-7Q	2.0 TFSI 190PS, 2.0 TFSI quattro 252PS, 2.0 TDI 150PS, 2.0 TDI ultra 150PS, 2.0 TDI 190PS, 2.0 TDI ultra 190PS, 2.0 TDI quattro 190PS, 3.0 V6 TDI 218PS, 3.0 V6 TDI quattro 218PS	The 0CK is the front-wheel-drive version; the 0CL is the quattro version.
8-speed tiptronic	0D5 AL552-8Q	3.0 V6 TDI quattro 272PS	The PDF reserves tiptronic for the 600Nm 3.0 V6 TDI quattro. SSP 644 identifies it as the AL552-8Q quattro gearbox.

The B9 uses the newer DL382 gearbox for the 7-speed S tronic models. On European-market B9 cars, the ZF 8HP automatic is only used with the 3.0 TDI 200kW engine.

Quattro systems

In this 2017 UK guide, quattro is available only on specific higher-output automatic models. Do not confuse TDI ultra with quattro ultra: in this PDF, “ultra” refers to efficiency-focused diesel models, not the later quattro ultra drivetrain branding.

quattro model	Power	Gearbox	Gearbox code	Notes
2.0 TFSI quattro	252PS	7-speed S tronic	0CL	Petrol quattro model listed across Sport and S line.
2.0 TDI quattro	190PS	7-speed S tronic	0CL	Four-cylinder diesel quattro option.
3.0 V6 TDI quattro	218PS	7-speed S tronic	0CL	V6 diesel quattro option.
3.0 V6 TDI quattro	272PS	8-speed tiptronic	0D5	Highest-output diesel quattro option, listed on S line.

Front-wheel-drive models in the PDF include the 1.4 TFSI, 2.0 TFSI 190PS, 2.0 TDI 150PS and 190PS, the 2.0 TDI ultra variants, and the 3.0 V6 TDI 218PS.

The brochure describes quattro as automatically distributing power between all four wheels according to grip. It does not list the mechanical centre-differential details, so confirm the exact drivetrain hardware from the VIN, PR codes or factory build sheet when comparing individual cars.

ETKA gives a useful clue about the hardware. For the 7-speed S tronic, gearbox 0CL is listed with a self-locking centre differential, while 0CJ is listed as “ultra quattro” with an oil-filled four-wheel coupling. For the 8-speed automatic, gearbox 0D5 is also listed with a self-locking centre differential. In other words, not every B9 quattro setup is the same: some cars use the traditional centre-differential quattro layout, while ultra quattro cars use a coupling-based system.

ETKA code	Gearbox	quattro hardware
0CL	7-speed S tronic	Self-locking centre differential
0CJ	7-speed S tronic	ultra quattro four-wheel coupling, oil-filled
0D5	8-speed tiptronic	Self-locking centre differential

Technical notes from SSP 644

Audi SSP 644 is a service training document for the A4 (8W). It is not a repair manual, but it has useful technical context that the sales brochure does not show.

Area	Useful detail
Body and aero	The A4 sedan has a claimed drag coefficient of 0.23; Avant is 0.26. Length is 4726mm and wheelbase is 2820mm. Boot volume is listed as 480 litres for sedan and 505 litres for Avant. SSP 644 says the body is 15kg lighter than the previous A4 (8K), using a mix of steels plus cast aluminium parts.
Fuel tank	Front-wheel-drive cars use a 40-litre tank as standard, with a 54-litre option. quattro cars use a 58-litre tank.
SCR / AdBlue	Diesel cars have SCR. SSP 644 lists two AdBlue tank sizes: 12 litres and an optional 24-litre version for longer range between refills.
Chassis platform	The B9 A4 is based on MLBevo. SSP 644 describes newly developed five-link front and rear suspension, with component design related to the Audi Q7 (4M).
Suspension codes	1BA is standard suspension. 1BE is sport suspension, about 23mm lower. 1BR is rough-road suspension, about 13mm higher. 1BQ is adaptive sport suspension with damping control, same ride height as 1BE. 1BL is adaptive comfort suspension with damping control, about 10mm lower than standard.
Service intervals	Flexible oil service is 15,000km / 1 year up to 30,000km / 2 years depending on use. Inspection service is 30,000km / 2 years. Cabin filter is 60,000km / 2 years. Engine air filter is 90,000km. Brake fluid is after 3 years, then every 2 years. S tronic oil interval is 60,000km.
Timing drive	SSP 644 lists timing belts for 1.4 TFSI and 2.0 TDI at 210,000km. 2.0 TFSI and 3.0 V6 TDI are listed as chain-driven with no scheduled replacement in the maintenance table.

Headlight types

There are three headlight types - Xenon, LED and Matrix LED.

PR	Headlight type

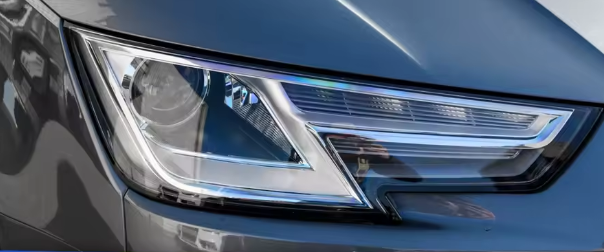

Standard	Xenon headlights with LED daytime-running lights

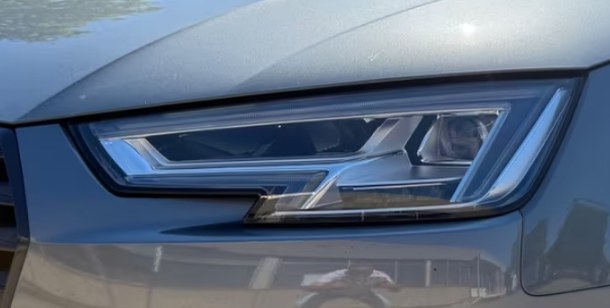

PX2	LED headlights with LED rear lights and dynamic rear indicators

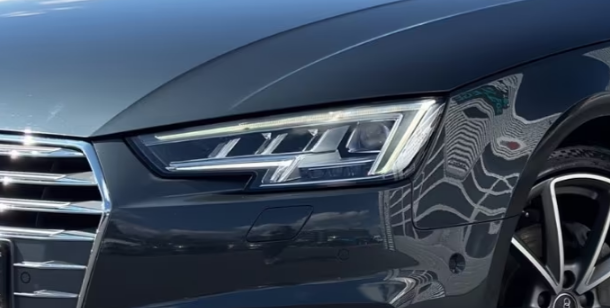

PXC	Matrix LED headlights with LED rear lights and dynamic front and rear indicators

Equipment

The 2017 UK guide structures the A4 around SE, Sport and S line trims. SE is already well equipped, Sport adds navigation and nicer interior/audio equipment, and S line adds the more aggressive exterior, LED lighting and sportier cabin details.

Trim	Key standard equipment	Notes
SE	17” 10-spoke crystal alloy wheels, Xenon headlights with LED daytime-running lights, Comfort Dynamic suspension, Audi Drive Select, deluxe 3-zone climate control, MMI Radio Plus with 7” colour screen, Audi Smartphone Interface, DAB, Bluetooth, cruise control with speed limiter, Parking System Plus, Keyless go, light and rain sensor, standard seats in Concept cloth	Avant adds power operated tailgate and electric load-area cover as standard.
Sport	Adds 17” 5-spoke Y alloy wheels, Sport exterior styling details, front Sport seats in System cloth, 3-spoke leather multi-function Sport steering wheel, LED Interior Lighting Pack, MMI Navigation with 7” screen, Audi Sound System with 10 loudspeakers, Audi Connect three-month trial	Sport is the first trim where the 2.0 TFSI quattro and V6 TDI quattro options appear in this PDF.
S line	Adds 18” 5-twin-spoke Star alloy wheels, Sport suspension lowered by 20mm, LED headlights with LED rear lights and dynamic rear indicators, S line bumpers and side skirts, front Sport seats with S embossing, Sprint cloth/leather, 4-way electric lumbar support, Matt brushed aluminium inlays, S line steering wheel, illuminated S door sills, stainless steel pedals, black headlining	S line is where the 272PS 3.0 V6 TDI quattro tiptronic is listed.

Notable options and packs

PR	Option or pack	What it includes	Notes
WB4	Technology Pack	MMI Navigation Plus with 8.3” display, MMI touch, 7” colour Driver Information System, high multi-function steering wheel, Audi Connect three-year subscription, Audi Phone Box with wireless charging	Cheaper on Sport and S line than SE in the PDF.
WB3	Comfort and Sound Pack	Electrically adjustable front seats, 4-way electric lumbar support, convenience key, Bang & Olufsen 3D sound system	B&O system has 19 loudspeakers, subwoofer, centre speaker and 755W output.
WB6, 9S8	Vision Pack	Audi Virtual Cockpit, Head-up display and High-beam assist	Only available with Technology Pack.
WB7, 9S8	Light and Vision Pack	Audi Virtual Cockpit, Extended LED Interior Lighting Pack and Matrix LED headlights with LED rear lights and dynamic front and rear indicators	S line only, and only with Technology Pack.
9S8	Audi Virtual Cockpit	12.3” full colour digital instrument cluster	Available separately, but the PDF lists it only with Technology Pack or as part of Vision/Light and Vision packs.
QQ1	LED Interior Lighting Pack	Additional interior ambient and courtesy lighting	Standard on Sport and S line, optional on SE.
QQ2	Extended LED Interior Lighting Pack	Multi-colour ambient lighting for door trims, storage areas, cup holder, centre console and footwells	Also included in Light and Vision Pack.
7P1, 3L5, PV3, 4A3, 4A4	Seat options	4-way lumbar, electric front seats, driver memory, heated front seats, heated front and outer rear seats	S line gets 4-way lumbar as standard. Rear heated seats are not available with cloth seats.
4ZD, 6FJ, 6XE, 6XF, 6XL, 0M1, FK2, 3FE, 3FU, 4GR, VW6, 1D4, 1D9	Exterior options	Black Styling Pack, folding mirrors, larger fuel tank for 2.0 TDI, larger AdBlue tank for TDI, sunroof, heated windscreen, privacy glass with front acoustic glazing, tow bar and Trailer Pack	TFSI and 3.0 TDI engines get the 54-litre fuel tank as standard; 2.0 and 3.0 quattro variants get a 58-litre tank.
